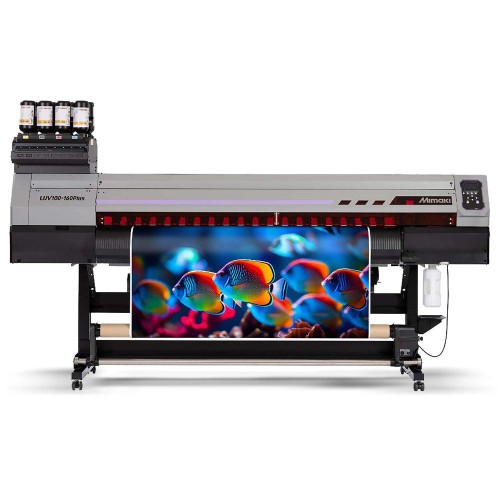

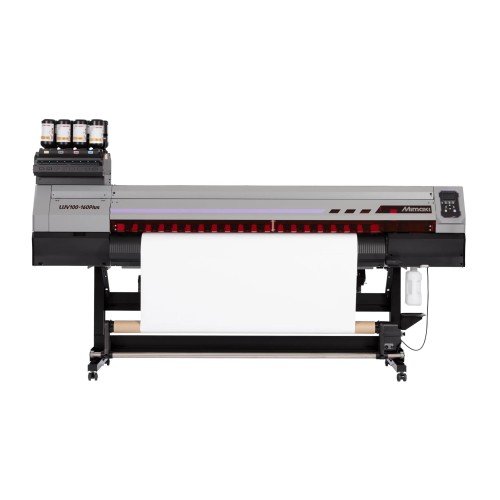

The Mimaki UJV100-160Plus 64" Roll-to-Roll UV-LED Printer is a professional wide-format UV inkjet printer designed for high-quality signage, banners, posters, window graphics, vehicle wrapping, wallpaper, labels, decals, POP displays, and commercial graphics.

The UJV100-160Plus features two staggered on-demand piezo printheads and UV-curable ink technology. It supports print resolutions from 360 dpi up to 1,200 dpi, with a maximum print width of 1,610 mm (63.4") and maximum media width of 1,620 mm (63.8").

The printer supports Mimaki LUS-170, LUS-190, and LUS-210 UV-curable ink, depending on regional availability. The available ink configuration can include CMYK, White, and Clear, with ink supplied in 1-liter bottles.

Product Specifications

• Brand: Mimaki
• Model: UJV100-160Plus
• Product Type: Wide-Format UV-LED Inkjet Printer
• Printer Type: Roll-to-Roll
• Print Technology: UV-Curable Inkjet with UV-LED Curing
• Print Head: On-Demand Piezo Head, 2 Staggered Layout
• Print Resolution: 360 dpi / 720 dpi / 900 dpi / 1,200 dpi
• Maximum Print Width: 1,610 mm (63.4")
• Maximum Media Width: 1,620 mm (63.8")
• Maximum Media Thickness: 1.0 mm
• Maximum Roll Diameter: 250 mm (9.8")
• Maximum Roll Weight: 45 kg (99.2 lbs)
• Roll Core Diameter: 2" / 3"
• Ink Type: UV-Curable Ink
• Compatible Ink: LUS-170 / LUS-190 / LUS-210
• Ink Capacity: 1-liter bottles
• Available Ink Colors: C, M, Y, K, W, Cl
• Interface: USB 2.0 Hi-Speed / Ethernet 1000BASE-T
• Maximum Power Consumption: 500 W
• Sleep Power Consumption: 4.5 W
• Power Supply: Single-Phase AC 100–120 V ±10% / AC 200–240 V ±10%
• Frequency: 50/60 Hz ±1 Hz
• Operating Temperature: 20–30°C (68–86°F)
• Operating Humidity: 35–65% RH, non-condensing
• Machine Dimensions: 2,775 × 700 × 1,475 mm
• Machine Dimensions: 109.3 × 27.6 × 58.1"
• Machine Weight: 167 kg (368.2 lbs)
• Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, CB, REACH, ENERGY STAR, EAC, RCM

Key Features

• 64" class wide-format UV printer
• 63.4" maximum print width
• Roll-to-roll UV-LED printing
• Two staggered on-demand piezo printheads
• Up to 1,200 dpi resolution
• UV-curable ink technology
• CMYK printing
• White ink capability
• Clear ink capability
• 1-liter ink bottles
• Supports media up to 63.8" wide
• Supports rolls up to 45 kg
• USB 2.0 Hi-Speed
• Ethernet 1000BASE-T
• ENERGY STAR certified
• Professional wide-format production workflow

Main Applications

• Signage
• Banners
• Posters
• Window Graphics
• Vehicle Wrapping
• Wallpaper
• Labels
• Decals
• POP Displays
• Flags
• Retail Graphics
• Promotional Graphics
• POS Displays
• Proofing
• Commercial Wide-Format Printing
