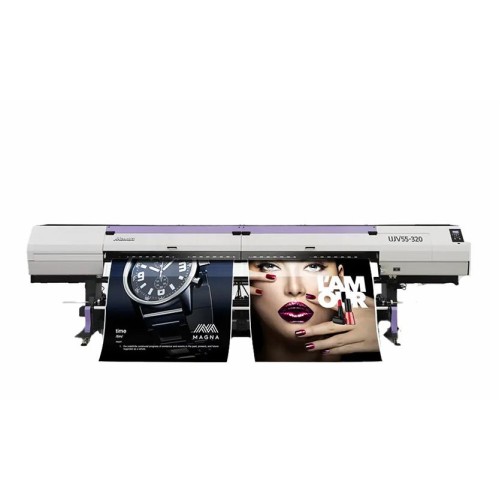

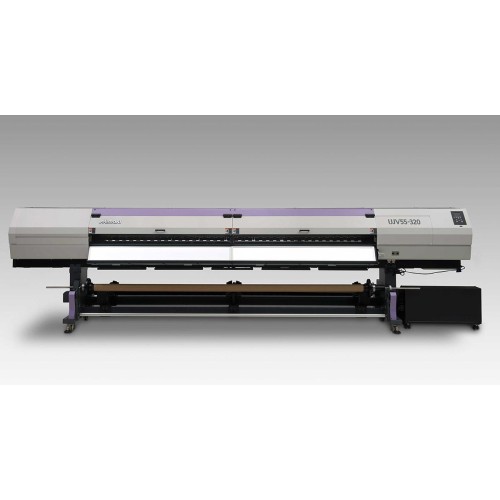

The Mimaki UJV55-320 126" Roll-to-Roll UV-LED Printer is a super-wide-format UV inkjet printer designed for high-volume production of banners, signage, posters, window graphics, vehicle graphics, building materials, and other large-format applications.

With a maximum print width of 3,200 mm (126"), the UJV55-320 is designed for applications requiring output significantly wider than conventional 64" printers. It can also support twin-roll printing, allowing two smaller rolls to be printed simultaneously when configured with the appropriate roll holders.

The printer uses Mimaki's LUS-120 UV-curable ink, including CMYK, Light Cyan, Light Magenta, and White. White ink enables high-value applications such as transparent-media printing and three-layer color + white + color graphics for backlit signage.

Mimaki specifies printing speeds of up to 60 m²/h in high-speed mode on banner material, while its UV-LED curing eliminates the conventional drying stage, allowing prints to be processed immediately after printing.

Product Specifications

• Brand: Mimaki
• Model: UJV55-320
• Product Type: Wide-Format UV-LED Inkjet Printer
• Printer Configuration: Roll-to-Roll
• Printing Technology: UV-Curable Inkjet with LED-UV Curing
• Printhead: On-Demand Piezo Head, 4 Staggered Lines
• Print Resolution: 300 / 600 / 900 / 1,200 dpi
• Maximum Print Width: 3,200 mm (126.0")
• Maximum Media Width: 3,250 mm (127.9")
• Minimum Media Width: 210 mm (8.2")
• Twin-Roll Printing: 1,524 mm (60") × 2 rolls
• Roll Holder Configuration: 1,620 mm (63.7") × 1 roll
• Media Thickness: 1.0 mm or less
• Large Drive Shaft Roll Diameter: Up to 250 mm (9.8")
• Roll Holder Diameter: Up to 180 mm (7.0")
• Large Drive Shaft Roll Weight: Up to 100 kg (220.5 lbs)
• Roll Holder Weight: Up to 18 kg (39.7 lbs)
• Ink Type: UV-Curable Ink
• Ink Model: LUS-120
• Ink Colors: C, M, Y, K, Lc, Lm, W
• Ink Packaging: 1-liter bottles
• Maximum Ink Supply Capacity: Up to 3 liters per color
• Interface: Ethernet 1000BASE-T / USB 2.0
• Power Supply: AC 200–240 V ±10%, 50/60 Hz ±1 Hz
• Maximum Current: 18 A or less
• Power Consumption: 4.3 kW or less
• Operating Temperature: 20–30°C (68–86°F)
• Operating Humidity: 35–65% RH, non-condensing
• Machine Dimensions Without Ink Supply Unit: 5,410 × 995 × 1,440 mm
• Machine Dimensions Without Ink Supply Unit: 213.0 × 39.2 × 56.7"
• Machine Dimensions Including Ink Supply Unit: 5,680 × 1,220 × 1,440 mm
• Machine Dimensions Including Ink Supply Unit: 223.6 × 48.0 × 56.7"
• Machine Weight: 910 kg (2,006 lbs)

Printing Performance

Maximum Printing Speed

Up to 60 m²/h

Mimaki specifies this speed on banner material in high-speed mode at 300 × 600 dpi, 4 pass.

Print Width

3,200 mm / 126"

This is the key specification that separates the UJV55-320 from standard 64" wide-format UV printers.

Maximum Media Width

3,250 mm / 127.9"

The printer can also be configured for twin-roll printing using roll holders, supporting two rolls up to approximately 60" each.

Ink System

Mimaki LUS-120 UV-Curable Ink

The UJV55-320 uses Mimaki's LUS-120 UV-curable ink.

Available Ink Colors

• Cyan
• Magenta
• Yellow
• Black
• Light Cyan
• Light Magenta
• White

Ink Packaging

1-liter ink bottles

The ink supply unit can hold up to 3 liters per color.

White Ink Printing

White ink is an important feature of the UJV55-320.

It can be used to produce vivid graphics on transparent media and create three-layer printing:

Color → White → Color

This is particularly useful for backlit signage and window graphics because the white layer improves color density and visual impact.

Key Features

• 126" super-wide UV printer
• 3.2-meter maximum print width
• Roll-to-roll UV-LED printing
• Up to 60 m²/h high-speed banner printing
• Up to 1,200 dpi resolution
• Four staggered rows of piezo printheads
• LUS-120 UV-curable ink
• CMYK + Light Cyan + Light Magenta + White
• White ink capability
• Three-layer printing
• Twin-roll printing capability
• Maximum roll weight up to 100 kg
• Automatic Nozzle Check Unit (NCU)
• Nozzle Recovery System (NRS)
• Mimaki Advanced Pass System 4 (MAPS4)
• Mimaki Fine Diffusion 1 (MFD1)
• Waveform control technology
• Built-in LED light for backlit-signage inspection
• Ethernet 1000BASE-T
• USB 2.0
• Designed for high-volume wide-format production

Main Applications

• Large-Format Signage
• Banners
• Posters
• Window Graphics
• Vehicle Wrapping
• Vehicle Graphics
• Backlit Signage
• Building Materials
• Retail Graphics
• Exhibition Graphics
• Indoor Displays
• Outdoor Displays
• Promotional Graphics
• Commercial Wide-Format Printing

Mimaki's official application list includes Sign & Display, Window Graphics, Banner, Poster, Vehicle Wrapping, and Building Material applications.
