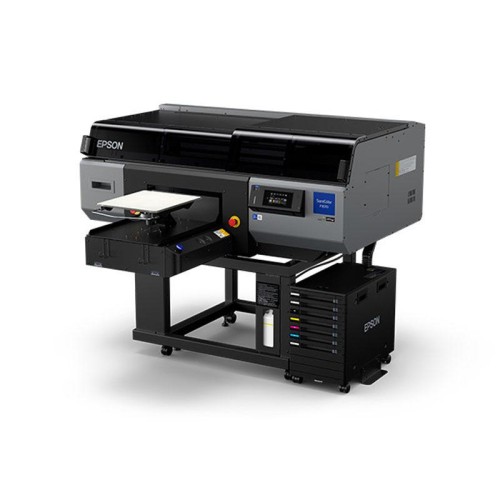

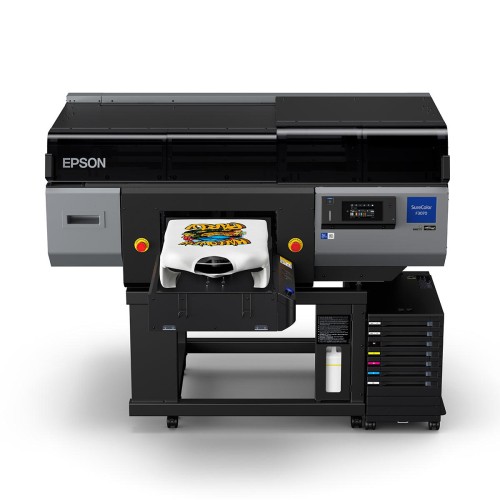

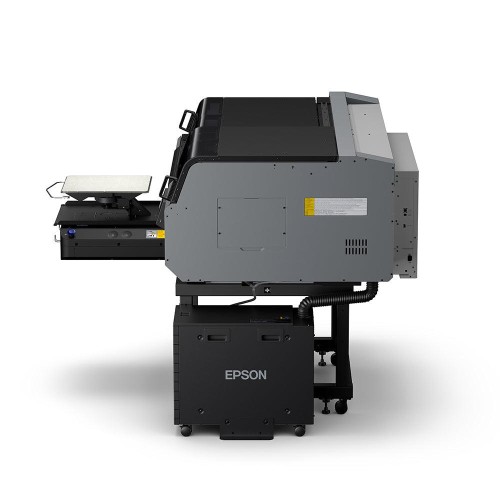

The Epson SureColor F3070 Max DTG Printer is an industrial Direct-to-Garment printing solution engineered for high-volume apparel production. Built for professional print shops, the F3070 Max combines dual PrecisionCore printheads, high-capacity bulk ink packs, automatic garment-thickness detection, and one-pass printing technology to deliver consistent, production-quality results.

Product Specifications

• Printer Type: Industrial Direct-to-Garment (DTG) Printer
• Model: Epson SureColor F3070 Max
• Model Number: SCF3070ME
• Print Technology: Dual PrecisionCore MicroTFP 10-Channel Drop-on-Demand Inkjet Printheads
• Printheads: 2 × PrecisionCore Printheads
• Total Nozzles: 16,000
• White Ink Nozzles: 8,000
• Color Ink Nozzles: 6,400
• Maximum Print Resolution: 1200 × 1200 DPI
• Minimum Ink Droplet: Variable Droplet Technology
• Ink Type: Epson UltraChrome DG Ink
• Ink Configuration: 5-Color — CMYK + White
• Ink Supply: Replaceable Bulk Ink Packs
• Ink Capacity: 1,500 mL per Ink Pack
• White Ink Capacity: 1,500 mL
• Maximum Garment Thickness: Up to 29.5 mm (1.16")
• Standard Platen: 14" × 16" Medium Quick-Load Hanger Platen
• Garment Thickness Adjustment: Automatic
• Printing Method: One-Pass Direct-to-Garment Printing
• Printhead Maintenance: Dedicated Cleaning Solution Channels
• Wiper System: Fabric Head Wiper System
• Printhead Service: User-Serviceable Printheads
• Printer Language: Epson ESC/P Raster
• USB Interface: Hi-Speed USB 3.0
• Network Interface: 1000Base-T Ethernet
• Operating Systems: Windows 10 / 8.1; macOS 10.12 or later
• Software: Epson Garment Creator
• Software Features: Cost Estimator, Text Tools, Hot Folders, Automation SDK
• Operating Temperature: 59°F–95°F (15°C–35°C)
• Recommended Temperature: 59°F–77°F (15°C–25°C)
• Operating Humidity: 20%–80% RH, non-condensing
• Recommended Humidity: 40%–60% RH, non-condensing
• Machine Dimensions: 68" W × 72" D × 53" H (1,712 × 1,809 × 1,336 mm)
• Machine Weight: Approx. 745 lbs (338 kg) for the Max Edition configuration
• Power Supply: AC 100–120 V / 200–240 V, 50/60 Hz
• Rated Current: 8.2 A at 100–120 V / 4.1 A at 200–240 V
• Power Consumption: Approx. 168 W or less during printing; approx. 20 W sleep
• Power Connections: 2 outlets required
• Country of Origin: Indonesia
• Ink Certification: OEKO-TEX ECO PASSPORT
• Compliance: RoHS
• Applications: T-Shirts, Hoodies, Sweatshirts, Sportswear, Workwear, Tote Bags, and Custom Apparel

Key Features

• Industrial Direct-to-Garment printing
• Dual PrecisionCore MicroTFP printheads
• 16,000 total nozzles
• Up to 1200 × 1200 DPI
• One-pass color and White printing
• Epson UltraChrome DG Ink
• 1.5-liter bulk ink packs
• CMYK + White configuration
• Automatic garment-thickness detection
• Quick-load hanger platen
• User-serviceable printheads
• Dedicated cleaning solution channels
• Fabric head wiper system
• Epson Garment Creator software
• Hot-folder and automation capabilities
• Designed for high-volume apparel production
• Standard 120 V operation capability
• Suitable for scalable production workflows
